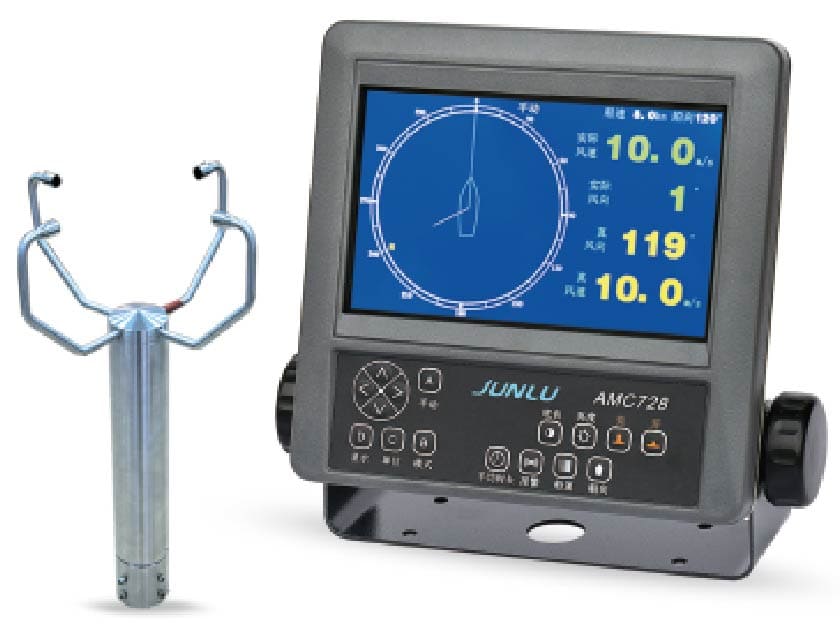

Ultrasonic Anemometer
ㆍ High precision, high reliability, no blind spots in 360 degrees, not affected by bad weather.
ㆍ No starting wind speed of traditional equipment, no mechanical maintenance.
ㆍ High-performance 7-inch color LCD display, always grasp the wind speed and direction.
ㆍ Dual NMEA0183 data input / output.



Anemometer





Specification

Main unit 230*21*83mm , weight 1kg
Sensor unit 274*274*413mm , weight 5kg
Weather sensor (including blinds) Φ220*190mm , weight 2kg
Power supply DC24V(-25%/+30%)/2A
Power consumption No more than 12W at 25°C
no more than 45W when heating
Operating temperature Outdoor -20-60°C , indoor -10-50°
Storage temperature -30-70°C
Humidity 10-90% relative humidity
Show 7-inch color LCD display
Brightness LCD screen background, brightness adjustable
Wind speed measurement range 0-40m/s
Wind speed measurement accuracy 0.1m/s(when the wind speed is less than 5m/s)
+2%(when the wind speed is greater than 5m/s)
Wind direction measurement range 0-359°
Wind direction measurement accuracy ±1°
NMEA data input (two channels) Optional receiving: GPS, compass, log data
NMEA data output (two channels) Wind speed and direction, weather (if any) data output
Temperature measurement range -40~+85°C
Temperature measurement accuracy 0.5°C
Humidity measurement range 0~100%RH
Humidity measurement accuracy 0.5%RH
Barometric pressure measurement range 500~1100hPa
Air pressure measurement accuracy 15hPa
