Fisheries Agency's Professional AIS Subsidy Program
* Holds a Class B certificate
* Incorporates advanced technology from em-trak, enabling intelligent connectivity with any nautical chart
* Easy installation and user-friendly operation
* Waterproof rating of IPX7
* Automated monitoring system
* Integration of Bluetooth and WiFi (B922 Class B)

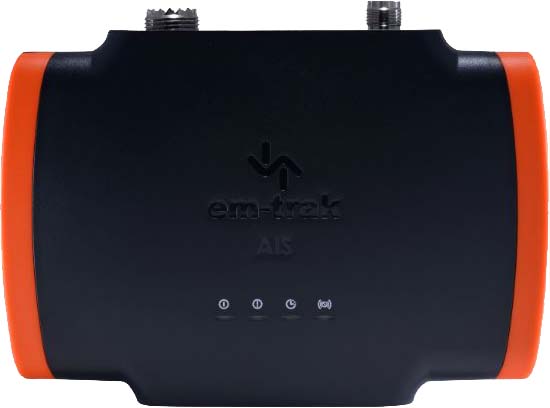

B921/B922





Specification

Size 150*115*45 mm
Weight 385g
Operating temperature -25°C ~ +25°C
Storage temperature -25°C ~ +70°C
Supply voltage 12V or 24V DC
Receivers/transmitters 2*receivers，1*transmitter
AIS receiver sensitivity (20% PER) -111dBm
AIS transmitter power 2W (+33dBm)
Operating frequency 156.025MHz – 162.025MHz
Channel bandwidth 25kHz
